What is lab equipment calibration?

In the context of lab research, it typically means adjusting or standardizing your equipment so it can be more precise. This can include marking the graduations on a measuring device, or figuring out how much an instrument deviates from standard and adjusting for that difference.

How often should pressure gauges be calibrated

Calibration is the procedure of comparing a reference with a known error margin against a device (for example a pressure gauge) under test. If the device doesn’t match the reference, then we adjust it to match, or at least come close, the desired measuring accuracy. The reference measurement instrument must be more accurate than the pressure gauge to be calibrated, and it must also be traceable. To calibrate a pressure gauge, we will need to check the values throughout the entire measuring range, zero point, intermediate values, and the full-scale value.

What does calibrating an instrument mean

Calibration is a comparison between a known measurement (the standard) and the measurement using your instrument.

What is the purpose of equipment calibration?

It is important to calibrate equipment to help assure accurate measurements and production of quality products with reduced errors and recalls. It is also important to calibrate equipment to foster innovation and the development of new technologies, as accurate measurements are foundational to both.

How often should you calibrate lab equipment?

Instrument calibration and maintenance are an integral part of any operation in manufacturing/ laboratory. and are vital for data quality assurance. Accurate and reliable monitoring results are crucial for data analysis, particularly when the monitoring results are to be compared with the relevant standards or guidelines for compliance purposes, or for population exposure and health risk assessments. Where such analyses lead to air quality policy formulation and the quality of the original data is especially important. This Procedure outlines the basic requirements for the calibration and maintenance of monitoring instruments based primarily on standard monitoring methods. Monitoring agencies should develop their own detailed calibration and maintenance programs appropriate to their data quality assurance goals.

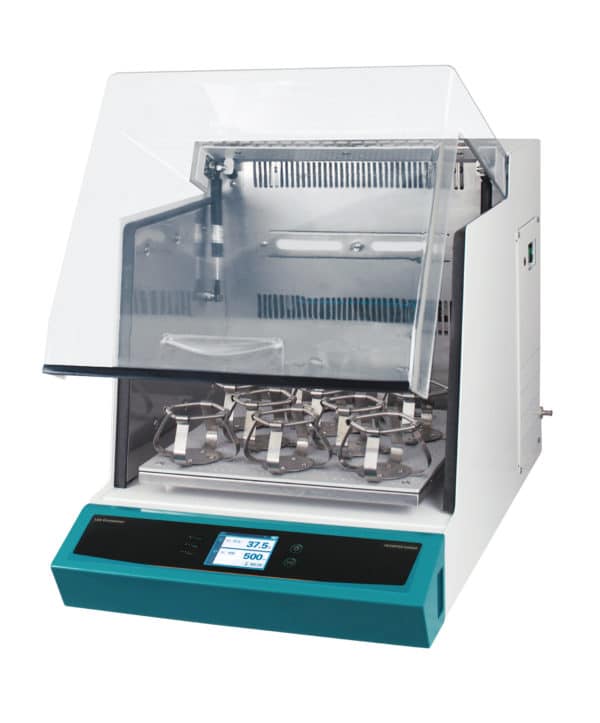

LAB COMPANION MODEL IST-3075 BENCHTOP INCUBATING SHAKER

Name: LAB COMPANION MODEL IST-3075 BENCHTOP INCUBATING SHAKER
SKU: AAH23465U
Price: 4938.07 USD
Availability: InStock

$4,938.07

Shipping Weight: 143lbs

Manufactured by: Jeio Tech

This product was added to our catalog on Friday 01 March, 2019.

1 in stock

Add to quote

SKU: AAH23465U Category: SHAKERS

Description

Performance

Temperature range:
– Ambient +5°C to 80°C for IST-3075 / 4075.
– Ambient -15°C (Min. 15) to 80°C for IST-3075R / 4075R.
Competitive high shaking speed up to 500 rpm.
Orbital shaking motion in 19mm diameter.
Microprocessor PID control.
Three point temperature calibration / Automatic tuning.
Wide speed range even with heavy workload.
– Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
– Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
Pleasant test environment by the smooth acceleration and deceleration control.
– Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
Air-tight silicone door seal to provide excellent temperature uniformity

Convenience

Intuitive touch screen LCD controller with easy icons and logical menus.
Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
Wide sample monitoring and convenient sample loading.
– Convenient sample monitoring without affecting inside environment thanks to the three side transparent acryl lid with bright LED lamps.
– Gas spring lid supports providing smooth motion, soft opening and closing.
Repetitive task can be easily performed as the platform stops where it starts.
– Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
Corrosion resistance stainless steel interior.
Built-in RS-232 port and USB port for external control and data collection.
Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)
