What is lab equipment calibration?

In the context of lab research, it typically means adjusting or standardizing your equipment so it can be more precise. This can include marking the graduations on a measuring device, or figuring out how much an instrument deviates from standard and adjusting for that difference.

How often should pressure gauges be calibrated

Calibration is the procedure of comparing a reference with a known error margin against a device (for example a pressure gauge) under test. If the device doesn’t match the reference, then we adjust it to match, or at least come close, the desired measuring accuracy. The reference measurement instrument must be more accurate than the pressure gauge to be calibrated, and it must also be traceable. To calibrate a pressure gauge, we will need to check the values throughout the entire measuring range, zero point, intermediate values, and the full-scale value.

What does calibrating an instrument mean

Calibration is a comparison between a known measurement (the standard) and the measurement using your instrument.

What is the purpose of equipment calibration?

It is important to calibrate equipment to help assure accurate measurements and production of quality products with reduced errors and recalls. It is also important to calibrate equipment to foster innovation and the development of new technologies, as accurate measurements are foundational to both.

How often should you calibrate lab equipment?

Instrument calibration and maintenance are an integral part of any operation in manufacturing/ laboratory. and are vital for data quality assurance. Accurate and reliable monitoring results are crucial for data analysis, particularly when the monitoring results are to be compared with the relevant standards or guidelines for compliance purposes, or for population exposure and health risk assessments. Where such analyses lead to air quality policy formulation and the quality of the original data is especially important. This Procedure outlines the basic requirements for the calibration and maintenance of monitoring instruments based primarily on standard monitoring methods. Monitoring agencies should develop their own detailed calibration and maintenance programs appropriate to their data quality assurance goals.

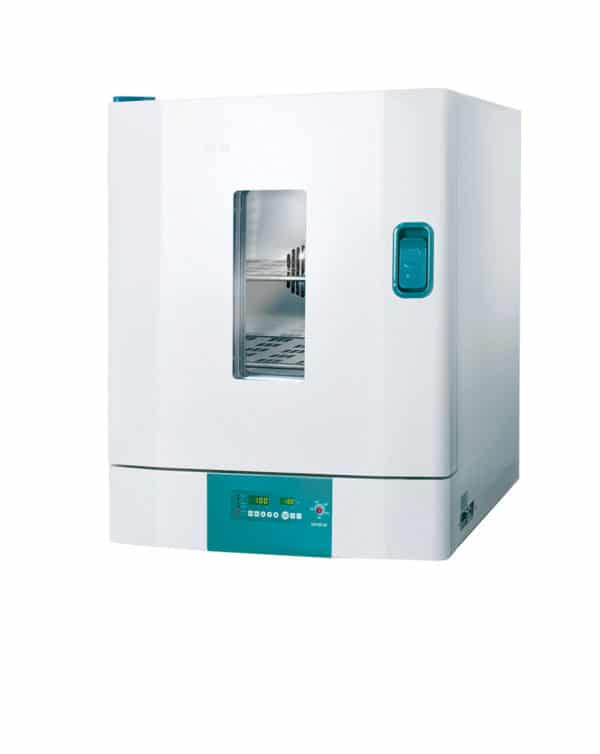

LAB COMPANION MODEL OF-22GW 151L FORCED CONVECTION OVEN

Name: LAB COMPANION MODEL OF-22GW 151L FORCED CONVECTION OVEN
SKU: AAH12276U
Price: 2911.84 USD
Availability: InStock

$2,911.84

Shipping Weight: 160lbs

Manufactured by: Jeio Tech

This product was added to our catalog on Monday 04 March, 2019.

1 in stock

Add to quote

SKU: AAH12276U Category: OVENS

Description

Intensive drying performance with a powerful air-flow manufactured. “Best Product for Reliable Results” by Jeio Tech.
Operating features

10℃ above room temperature to 250℃
Microprocess PID control/ Auto-tuning/ Calibration
Digital timer: 1 min to 99 hr 59 min, delayed ON/ OFF
Over-temperature limiter/ Door opening alarm
3 different temperature values memorable without auto-tuning
Digital LED display (1℃ resolution) with touch-sensitive keypads
RS-232 interface available

Constructional features

Forced-air convection with a noiseless sirocco fan which ensures good mixing and strong dispersion
Optimized sample monitoring with threefold tempered safety glass window (optional)
Adjustable fan speed with analog dial to prevent powder sample blowing (optional)
Dual-wall door opens to 180° and features double rack door handle
Rounded inner chamber corners for easy cleaning and better air-flowing
Corrosion-resistant incoloy sheath heater and stainless steel interior
Adjustable 2 top ventilation slides to control inner air, vapor circulation (dia 38mm/ 1.5″)
