What is lab equipment calibration?

In the context of lab research, it typically means adjusting or standardizing your equipment so it can be more precise. This can include marking the graduations on a measuring device, or figuring out how much an instrument deviates from standard and adjusting for that difference.

How often should pressure gauges be calibrated

Calibration is the procedure of comparing a reference with a known error margin against a device (for example a pressure gauge) under test. If the device doesn’t match the reference, then we adjust it to match, or at least come close, the desired measuring accuracy. The reference measurement instrument must be more accurate than the pressure gauge to be calibrated, and it must also be traceable. To calibrate a pressure gauge, we will need to check the values throughout the entire measuring range, zero point, intermediate values, and the full-scale value.

What does calibrating an instrument mean

Calibration is a comparison between a known measurement (the standard) and the measurement using your instrument.

What is the purpose of equipment calibration?

It is important to calibrate equipment to help assure accurate measurements and production of quality products with reduced errors and recalls. It is also important to calibrate equipment to foster innovation and the development of new technologies, as accurate measurements are foundational to both.

How often should you calibrate lab equipment?

Instrument calibration and maintenance are an integral part of any operation in manufacturing/ laboratory. and are vital for data quality assurance. Accurate and reliable monitoring results are crucial for data analysis, particularly when the monitoring results are to be compared with the relevant standards or guidelines for compliance purposes, or for population exposure and health risk assessments. Where such analyses lead to air quality policy formulation and the quality of the original data is especially important. This Procedure outlines the basic requirements for the calibration and maintenance of monitoring instruments based primarily on standard monitoring methods. Monitoring agencies should develop their own detailed calibration and maintenance programs appropriate to their data quality assurance goals.

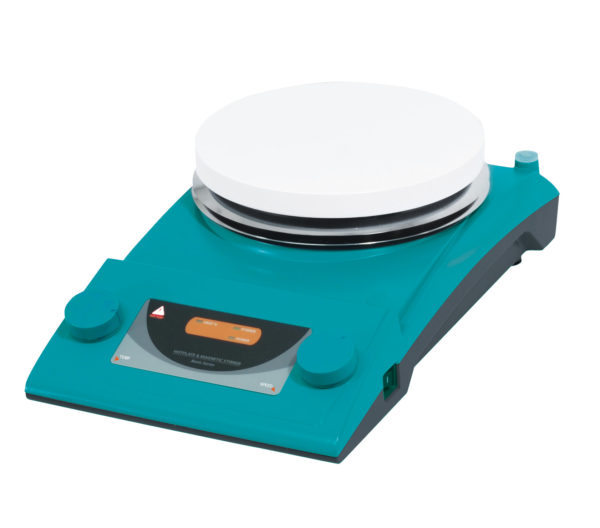

LAB COMPANION MODEL TS-14S ADVANCED HOTPLATE & MAGNETIC STIRRER 120V

Name: LAB COMPANION MODEL TS-14S ADVANCED HOTPLATE &amp; MAGNETIC STIRRER 120V
SKU: AAH34413U
Price: 696.18 USD
Availability: InStock

$696.18

Shipping Weight: 7lbs

Manufactured by: Jeio Tech

This product was added to our catalog on Wednesday 27 February, 2019.

1 in stock

Add to quote

Description

Digital Dia.140mm
with Pt100 Sensor US plug
Performance & Convenience

Microprocessor PID temperature control.
Feedback control allows constant stirring speed.
Auto-tuning and temperature calibration functions.
Multi-functional temperature control modes. (optimal / fast / slow / user / point)
Optimum heating level is adjustable from 0 to 100%.
Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
Fast and precise stirring operations are enabled by BLDC motor and special magnet with extremely strong magnetic coupling power.
Smooth-start mechanism provides virtually no decoupling of stir bars even with viscous media.
Instant halt of the stirring operation.
Precise temperature is set by digital display and optimum heating level is adjustable.
Advanced dual wait on/off timer modes.
– User can set timer to starts immediately after the timer setting or only after reaching the set temp.
Separate operation RUN/STOP button.
Provided temperature probe detects the actual temperature of media in real time. (PT100, max. 250℃, SN-8-4 connector sensor)
